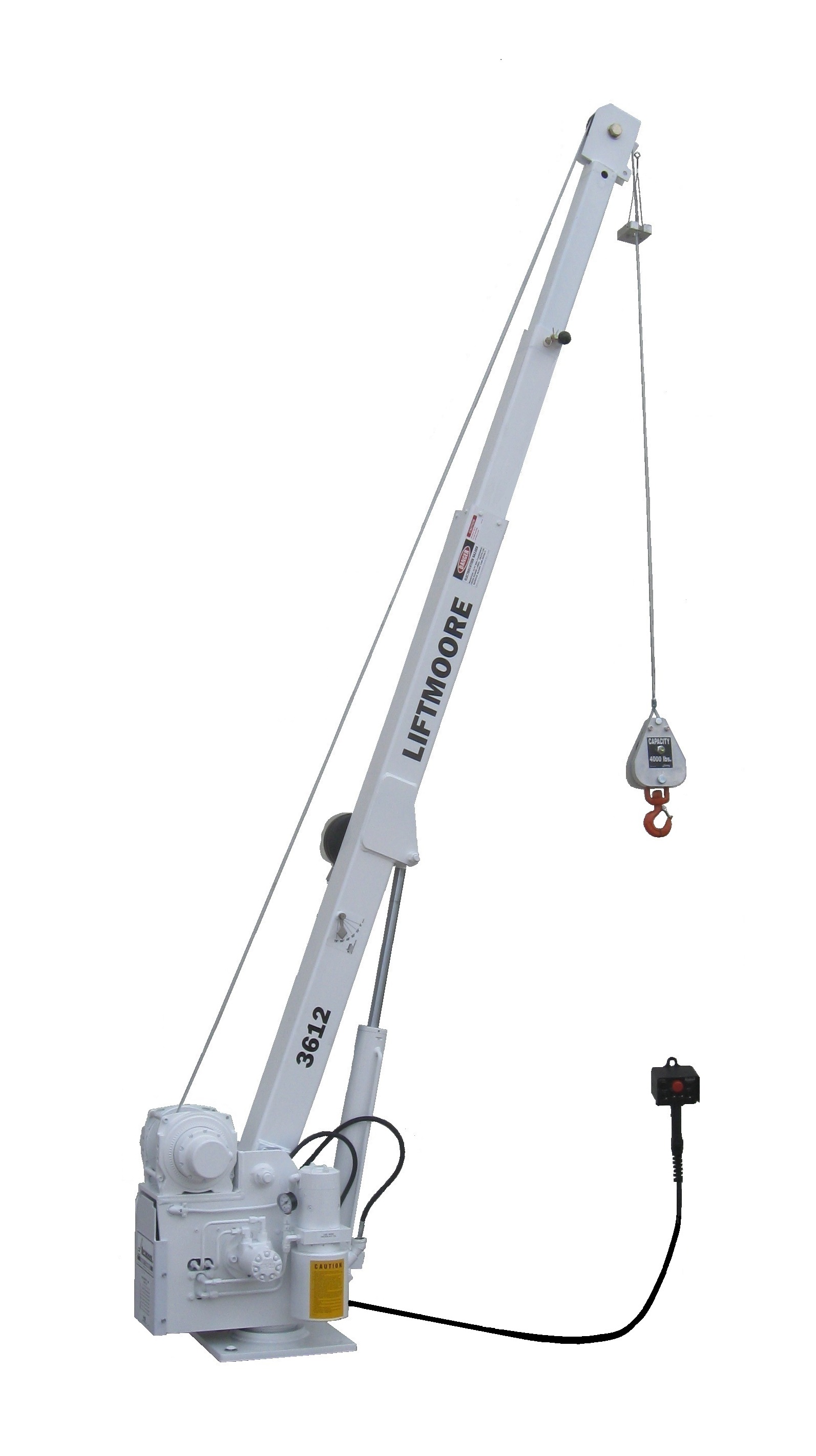

DC Powered Cranes: 3612REE

12,000 ft.-lb. moment rating and 3,600 lb. max capacity

Power elevation from -5 degrees to + 75 degrees.

Power rotation is unlimited.

Power extension from 7 ft.-11 ft. with a 4 ft. pull out to 15 ft. is standard.

A load sensor & anti two-block is standard.

Cylinders have a integral counterbalance valve for safety, this valve holds the load in the event of hose failure and controls the rate of boom decent.

2,000 lb. single line capacity planetary gear winch with 2.7 Hp motor.

62 ft. of 1/4" galvanized aircraft cable is standard. Minimum breaking strength is 7,000 lbs.

Optional wireless radio controls are available (wireless controls maintain the use of the standard wired control).


For More information select a link below:

Note: Adobe Acrobat Reader, free from https://get.adobe.com/reader/ is needed to view pdf files.

3612REE 7-15
