Hydraulic Powered Cranes: When Longer Duty Cycles are Needed

Hydraulically Powered from the trucks P.T.O / Pump combo or Clutch pump. From 3,200 lb. max capacity with a moment rating of 10.000 Ft-lbs up to 10,000 lb. max capacity with a moment rating of 72,000 ft.-lbs.

DC Powered Cranes: Intermittent Duty as per S.A.E. J706 (section 6.2)

12V DC Powered Cranes, From 800 lb. max capacity to 6,000 max capacity. All DC powered cranes have limited duty cycles, by design DC Powered Motors are limited by the heat it generates, motors must be allowed to cool and the battery to replenish its charge. The truck should be running anytime the crane is used. Exceeding the Duty Cycle and or lack of an adequate power supply will result in premature motor failure.

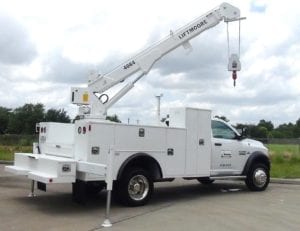

Liftmoore crane bodies are designed to maximize the abilities of the crane matched to an appropriate chassis.

A jackstand should be used in conjunction with any of the smaller cranes to keep truck as level as possible while loading. Outriggers are required on most installations to meet the requirements of 1910.180 in regards to stability. The Installer is required to perform the mandated stability test and fill out the supplied placard and affix it to the body of the crane.

All controls are removable, all controls use weather resistant toggle switches.

Liftmoore offers Boom rest, Pedestals and Reservoirs sized to match your crane.

Liftmoore maintains a fleet of demo trucks utilized by our Sales Team solely for the purpose of product demonstrations.

Access the archives to view previously sold demo trucks. This is a great way to see options we offer, and what our cranes and bodies look like.

See our complete product listing which includes cranes, outriggers and accessories with item numbers.
